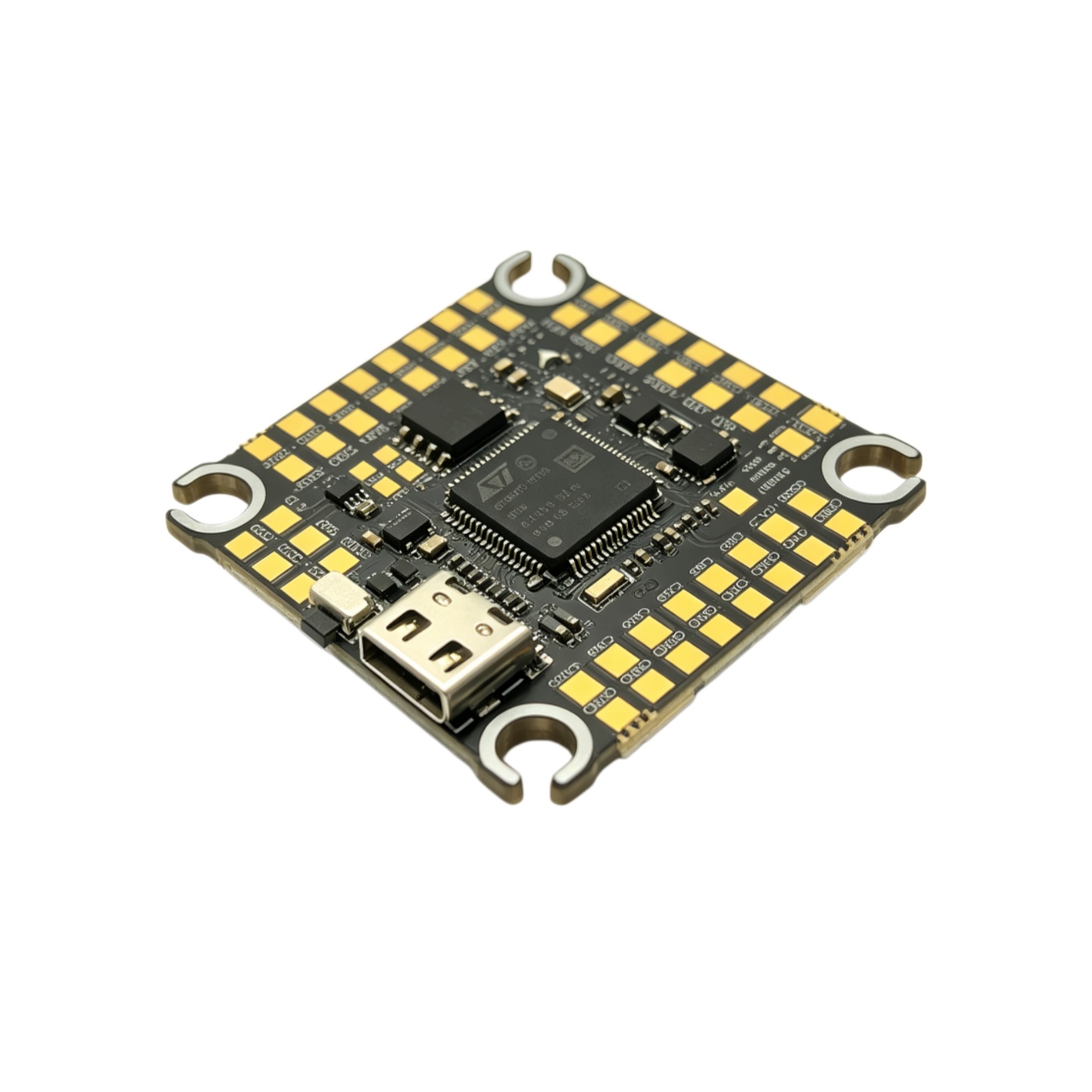

F405 Flight Controller BLE Wireless Configuration for Racing Drone
High integration,Meticulous Design,The PCB adopts high-end 6-layer 1oZ thick copper sheet, with strong anti-interference ability
-
*High-Speed Processing
*High-Precision Sensors
*Ample Blackbox Memory
*Versatile Connectivity
*Rugged Power Delivery
*Multi-Firmware Compatible: Runs Betaflight(racing), ArduPilot, and INAV on the same board
Specification:
Firmware: Betaflight/INAV/Ardupilot
MCU: STM32F405
Barometer:SPL06-001
OSD: AT7456E
Input Voltage: DC 3-12S Lipo
Blackbox: 16MB
Motor output :8Chf
PWM outputs: Motor *8 + Servo *2
UARTs: 6CH
Buzzer:support
BEC Output : 5V/3A,12V/2.5A
MountingHole: 30.5*30.5mm/φ4mm
Dimension:38*38mm
Receiver: ELRS/ CRSF/S.BUS/ Frsky/ Futabay/ TBS Crossfre/Flysky /DSMX
