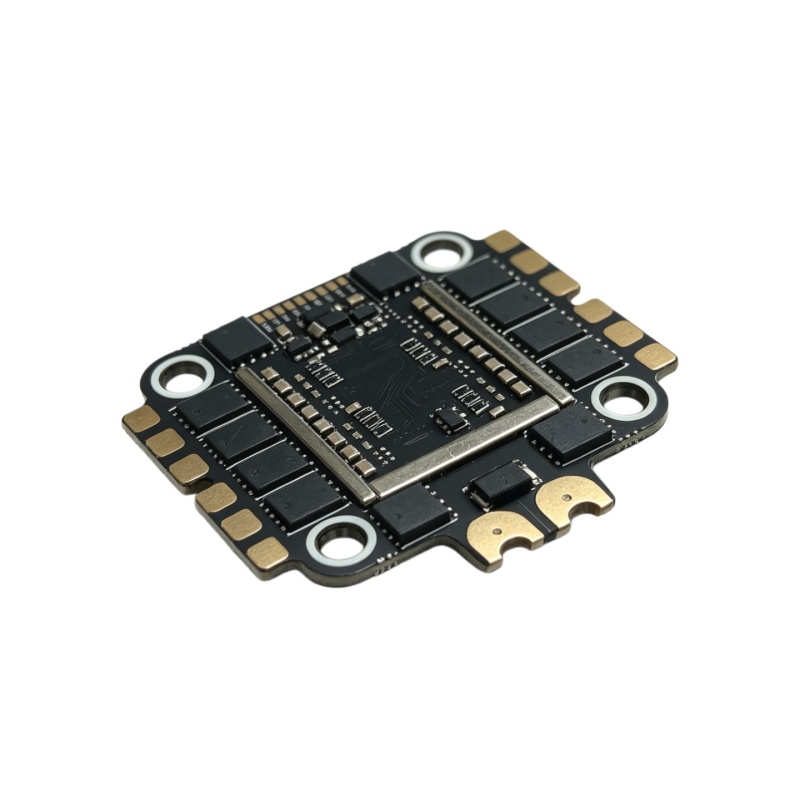

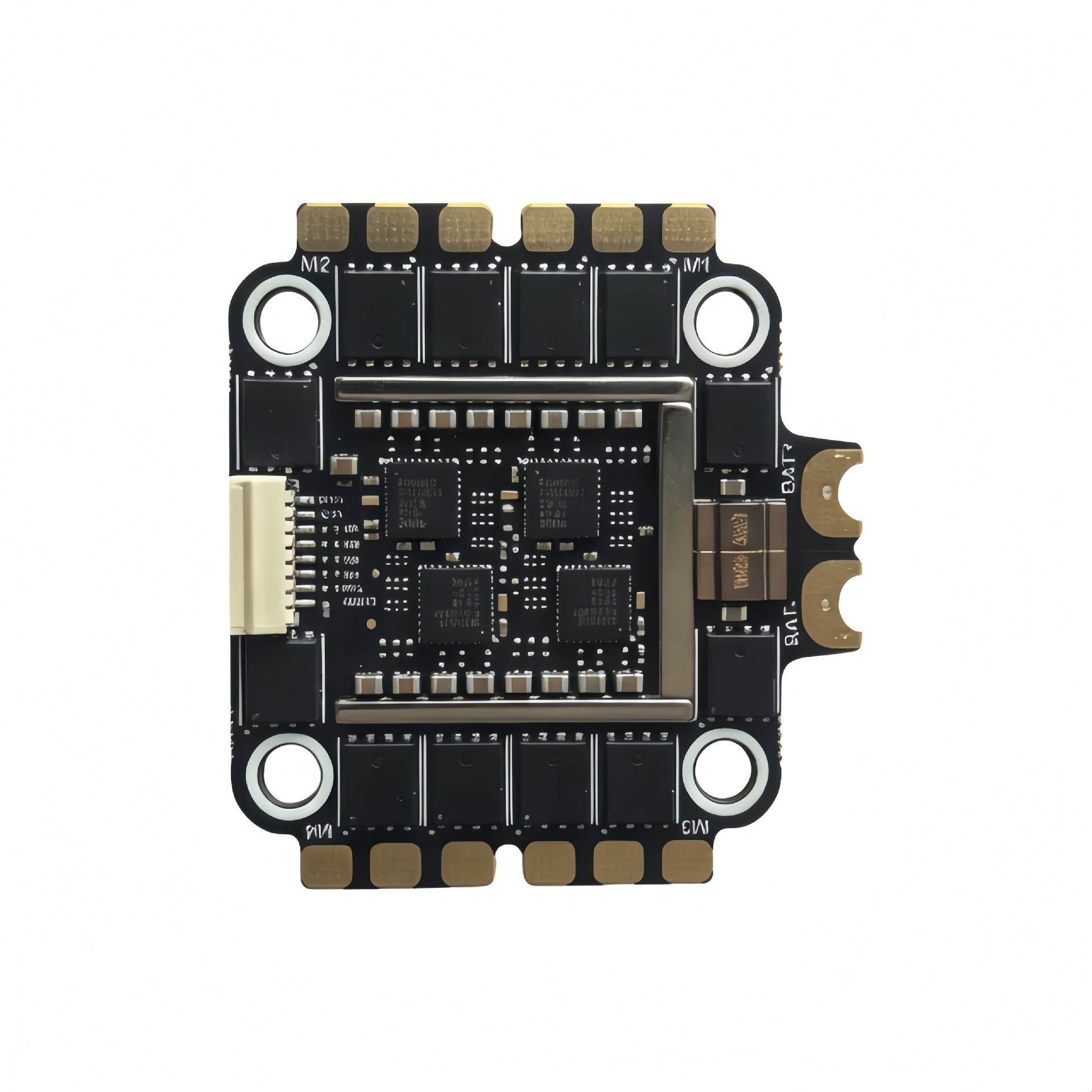

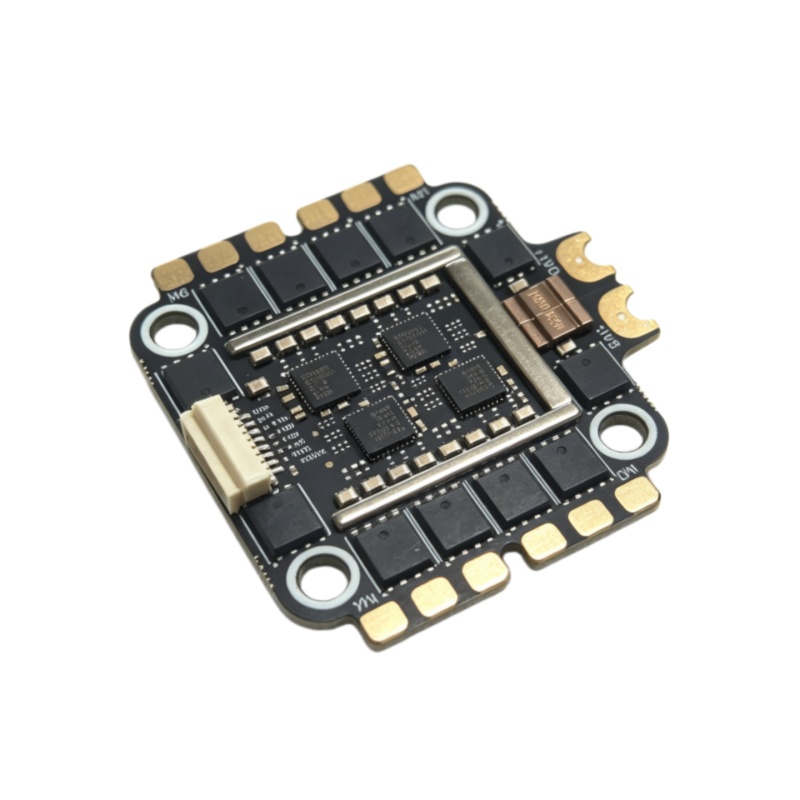

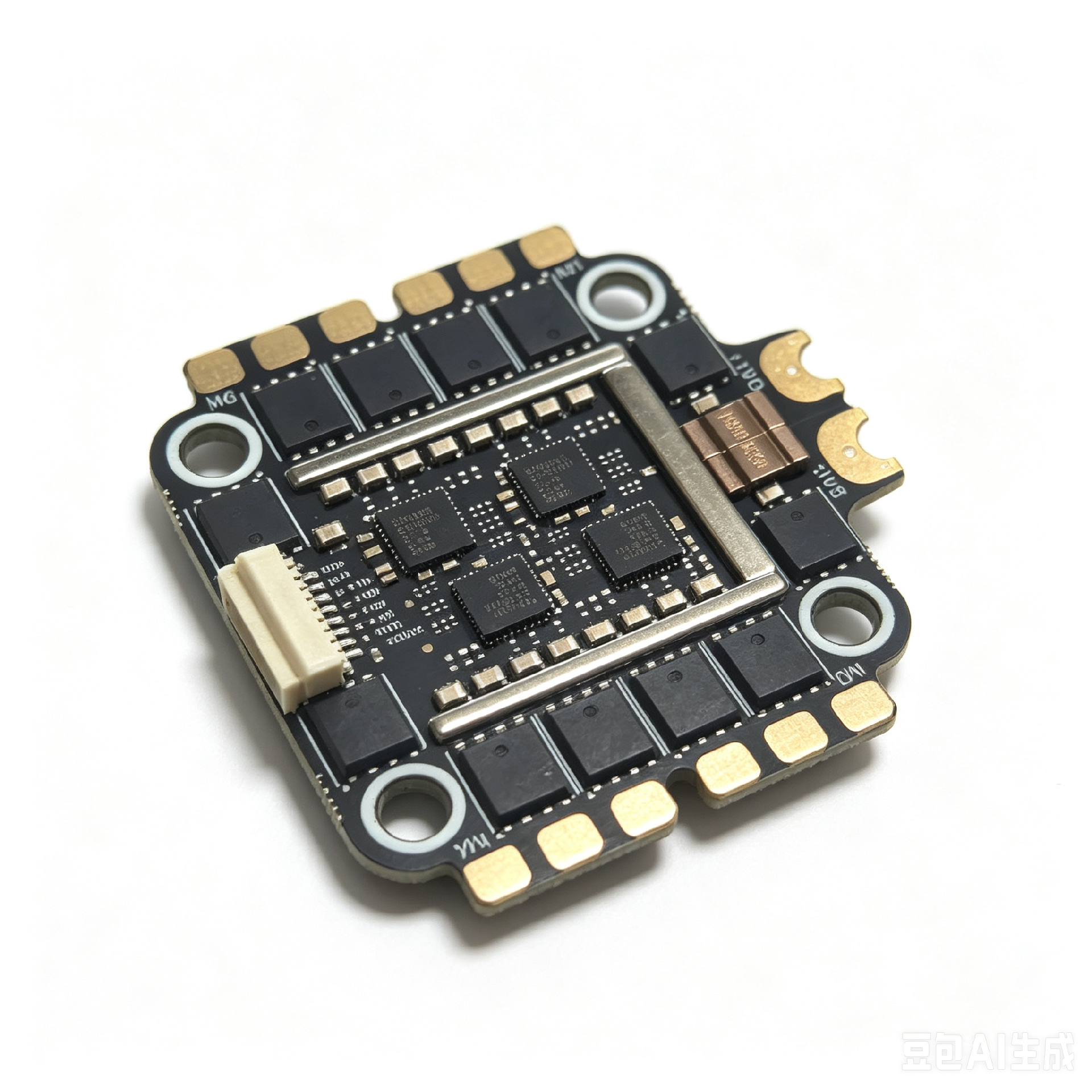

CWS BLHeli-32 8S ESC 65A 4in1

Key Features:

· High Current Handling: Continuous current of 65A with a peak burst rating of 80A,

 compatible with 3-6S LiPo batteries—ideal for high-load flight conditions.

· Modern Firmware: Most new models come pre-loaded with AM32 firmware,

offering fast response and web-based parameter tuning; some variants retain BLHeli_32 or Bluejay options.

· Fast Signal Response: Powered by a 32-bit F4/F421 MCU,

supporting digital protocols like Dshot600 for ultra-smooth and precise throttle control.

· Integrated Design: Built-in current sensor for real-time monitoring and a 5V BEC to power the flight controller.

Mounting holes feature anti-vibration grommets to reduce flight-induced noise.

Specifications

Firmware: BL32.10.0.0/AM32 /

MCU：QF32MTF4AK8U7

InputVoltage: DC 3-8S Lipo

Continuous Current: 65A

Burstpeak Current: 100A

Input Signal: PWM, Dshot150/300/600

MountingHole: 30.5*30.5mm/φ4mm

Thickness: 1.6mm

Size: 46.3*40.3*5.8mm
