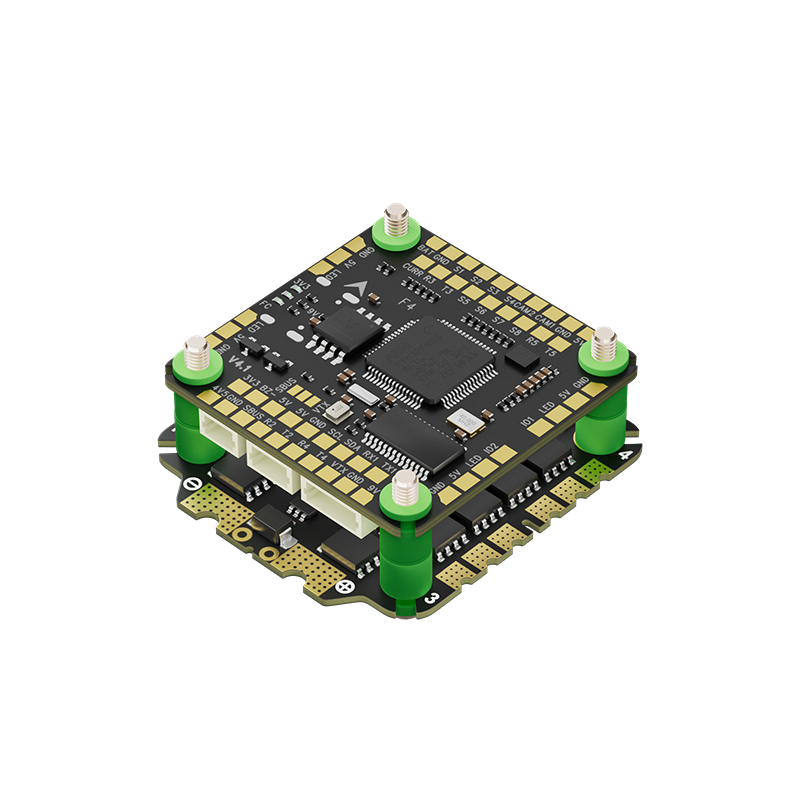

CWS F465S V3 FPV Stack
This flight tower integrates a high-performance F405 flight controller with a 65A 4-in-1 ESC, purpose-built for 5- to 7-inch FPV racing and freestyle drones.

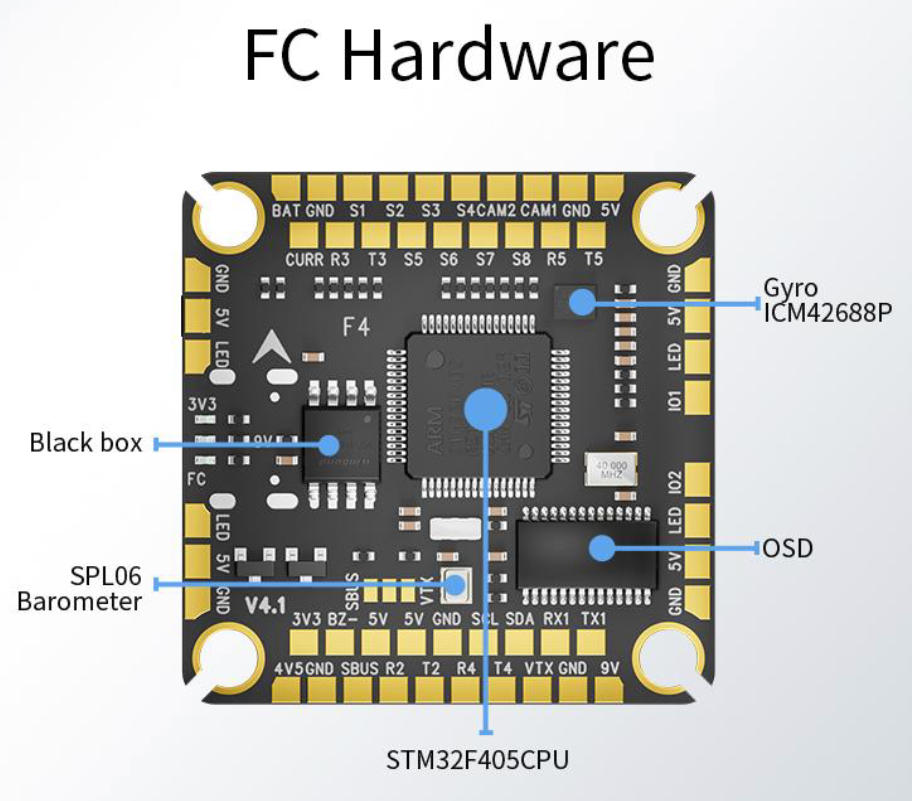

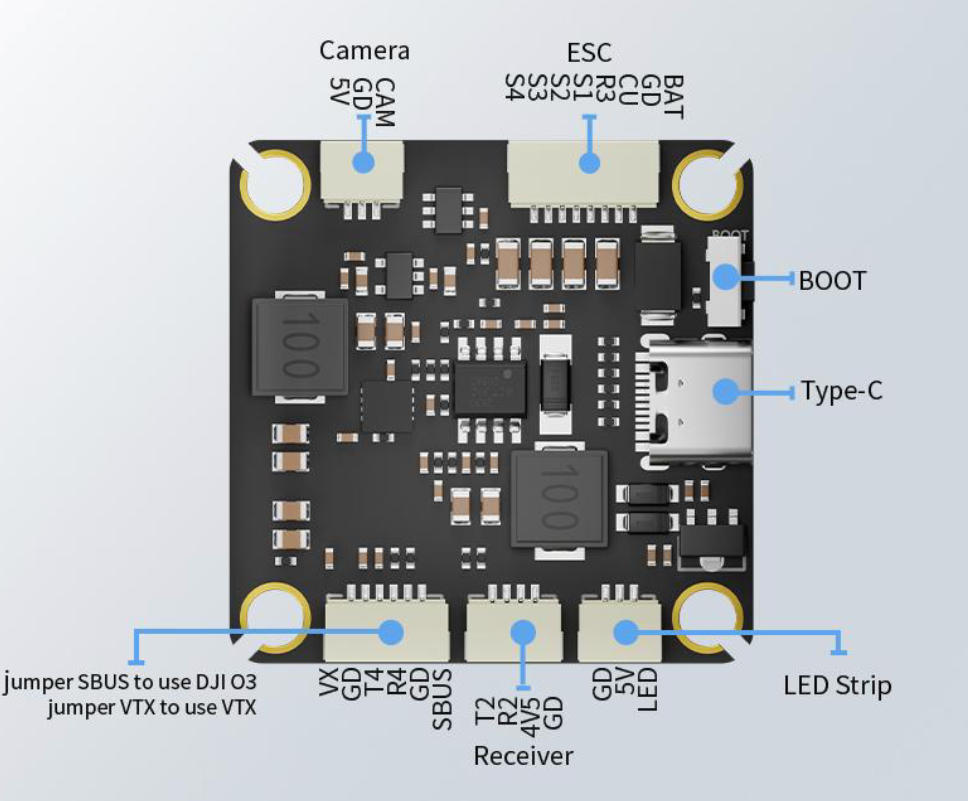

FC Specification:
Firmware: Betaflight/INAV/Ardupilot
MCU: STM32F405
Barometer:SPL06-001
OSD: AT7456E
Input Voltage: DC 3-12S Lipo
Blackbox: 16MB
Motor output :8Ch
PWM outputs: Motor *8 + Servo *2
UARTs: 6CH
Buzzer:support
BEC Output : 5V/3A,12V/2.5A

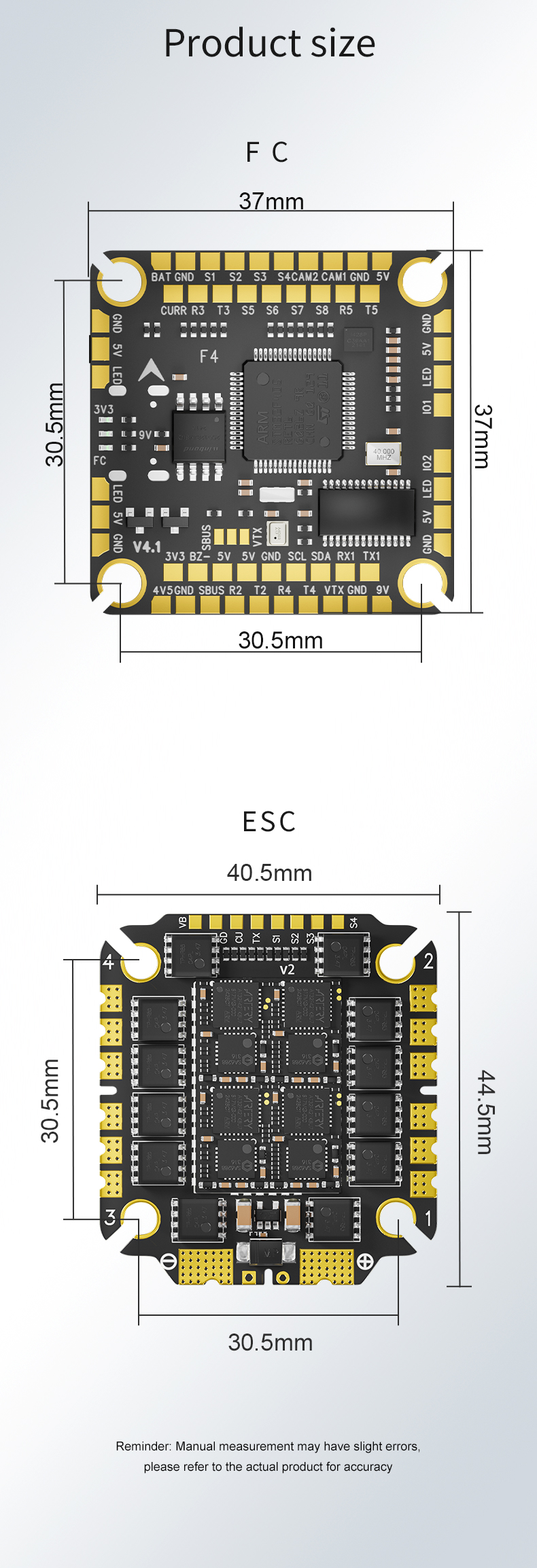

MountingHole: 30.5*30.5mm/φ4mm
Dimension:38*38mm
Receiver: ELRS/ CRSF/S.BUS/ Frsky/ Futabay/ TBS Crossfre/Flysky /DSMX
ESC Specifications
Firmware: AM32
MCU：QF32MTF4AK8U7
InputVoltage: DC 3-8S Lipo
Continuous Current: 65A
Burstpeak Current: 100A
Input Signal: PWM, Dshot150/300/600
MountingHole: 30.5*30.5mm/φ4mm
Size: 46.3*40.3*5.8mm
Parts list
F405 V3 FC*1
3055S/3065S/3075S ESC*1
8PIN SH1.0mm Connecting line*1 M3*8mm Shock-absorbing ball*8
35V 1000UF capacitance*1、 XT60 power cord*1
Nut*8
M3*30mm Metal screws*4
