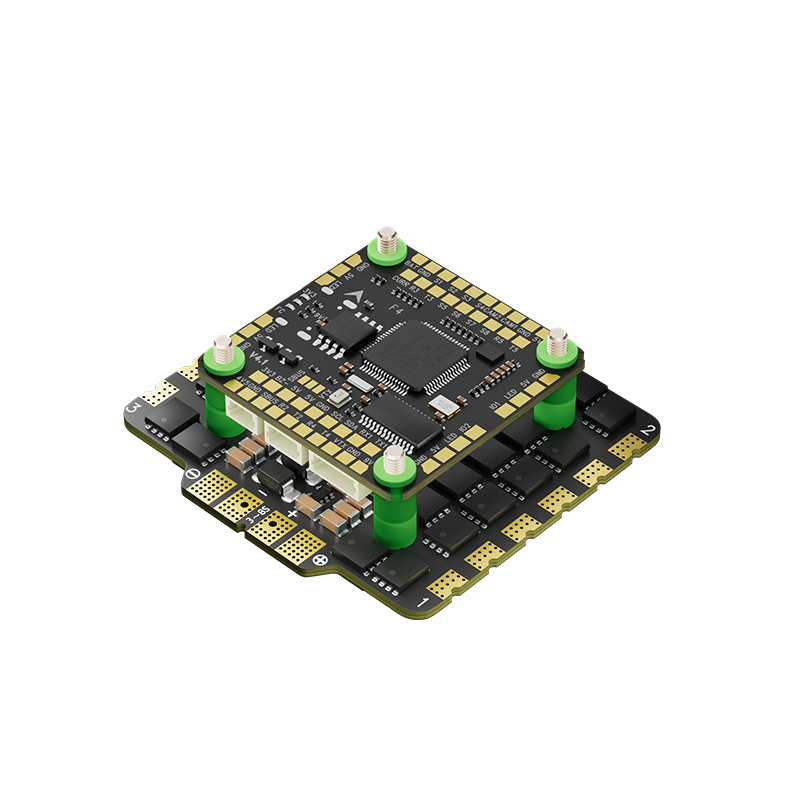

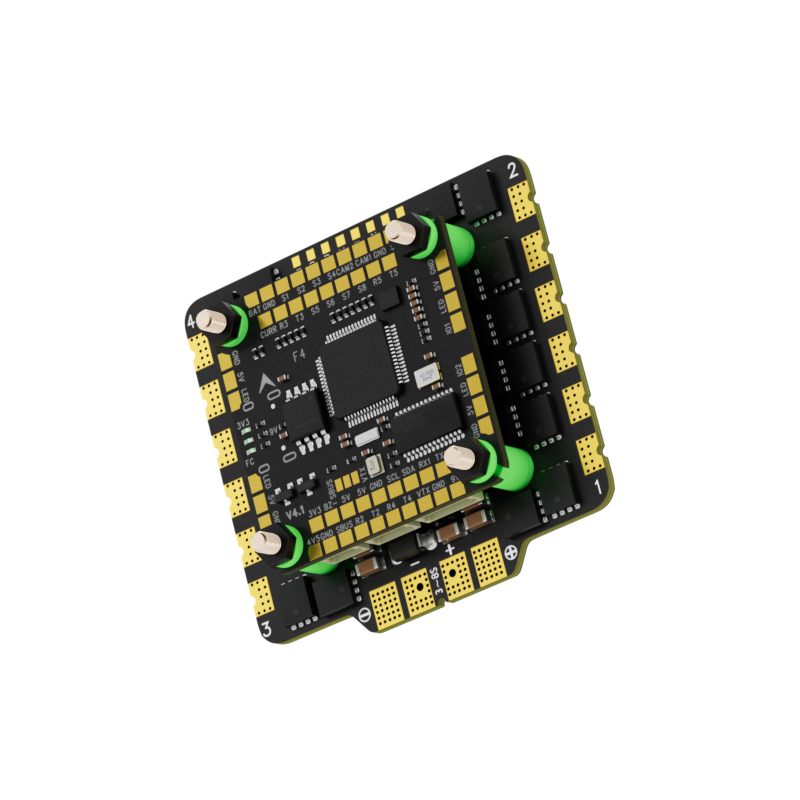

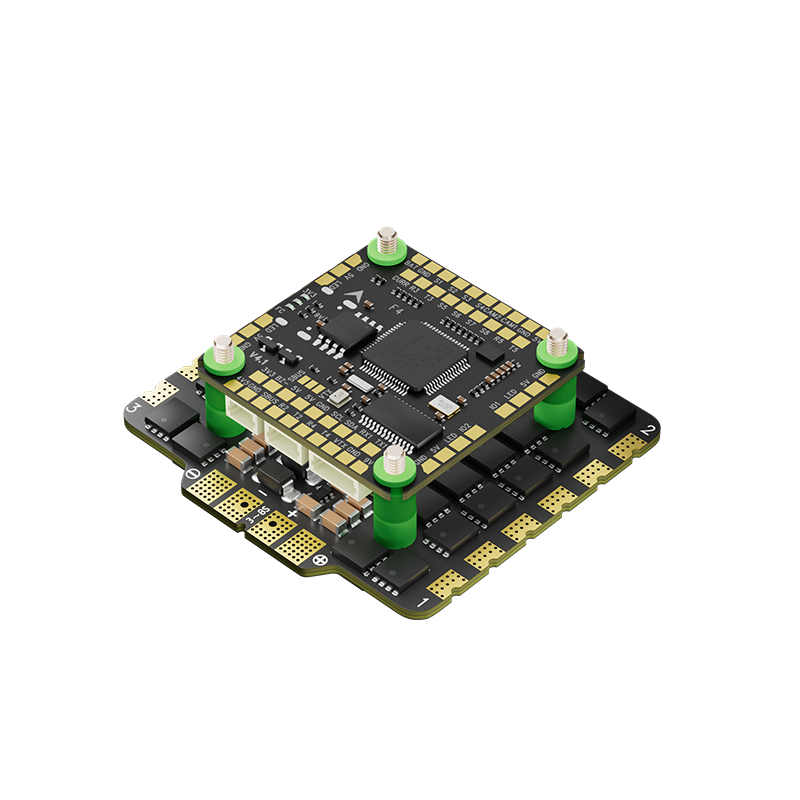

F4100 V4 FPV Stack

High-performance F405 FC paired with a 100A 4-in-1 ESC. Supports 3-6S, 100A continuous (120A burst). Standard 30.5mm stack with built-in current sensor & dual BEC (5V/9V). Massive headroom for heavy-lift 7-inch builds, X-class, or extreme freestyle – rock-solid power delivery when you need it most.

Feature
Specification

FC Specification:

CPU:STM32F405RGT6

·Gyro:ICM42688P

Barometer:SPL06-001

OSD:support

BlackBox:16MB

MotorOutput:8ch

LEDStrip:support

Buzzer:support

·UART:5ch

BECOutput:5V/2.5A,9V/2.5A

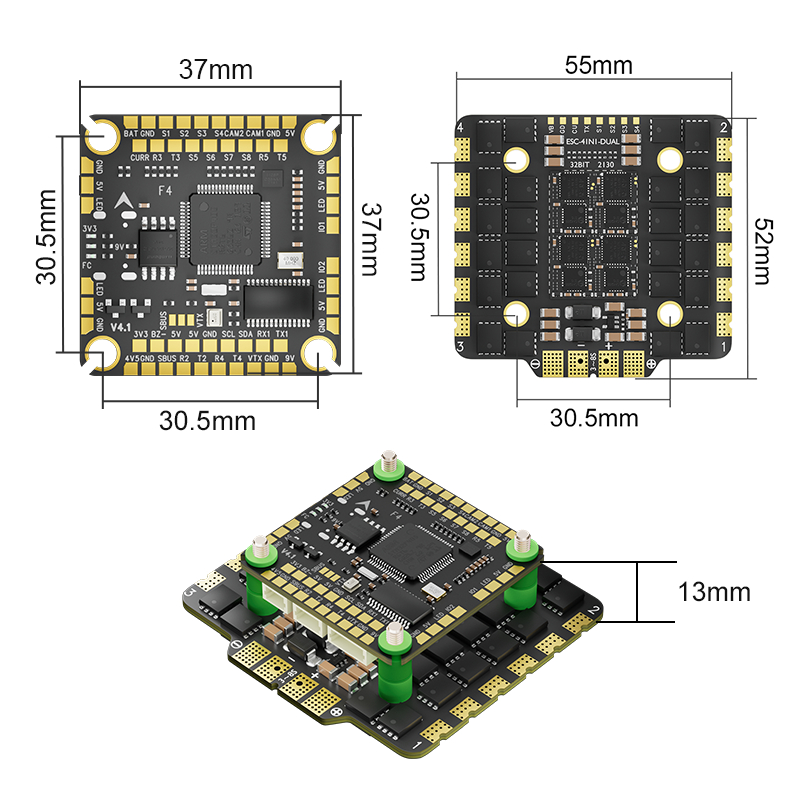

MountingHole:M3,30.5mm*30.5mm

Dimension:37mm*37mm

Weight:9.4g

Firmware: Betaflight/INAV/Ardupilot

InputVoltage:3~8SLipo

·Receiver:ELRS/CRSF/S.BUS/Frsky/ Futabayfysky/TBs Crossfre/DSMX

Speicification

Firmware: BLHeliSuite32_32.10.0.0

size: 57.2mm*57*5.7mm

Weight:: : 33g

MountingHole: :30.5mm-30.5mm φ4mm

Continuous Current:100A

Peak Current::120A

Input Voltage:DC 3-8S Lipo

Current Ratio:60

InputSignal:PWM,Oneshot125,Oneshot42, Multishot,Dshot150/300/600

Parts list

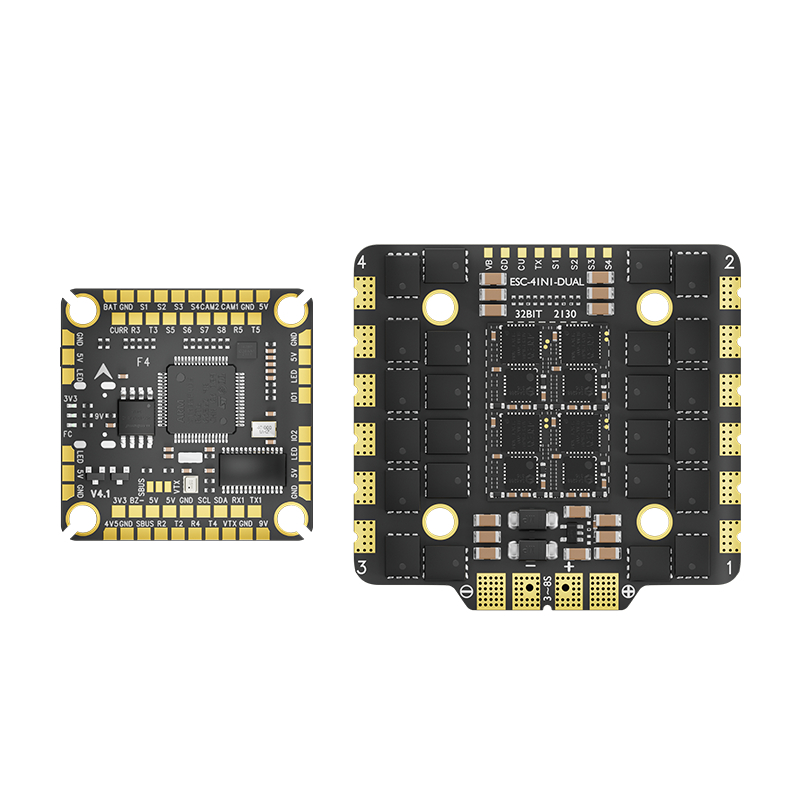

F405 V4 FC*1

100 BL32 ESC*1

8PIN SH1.0mm Connecting line*1 M3*8mm Shock-absorbing ball*8

35V 1000UF capacitance*2 XT90 power cord*1

Nut*8

M3*30mm Metal screws*4
