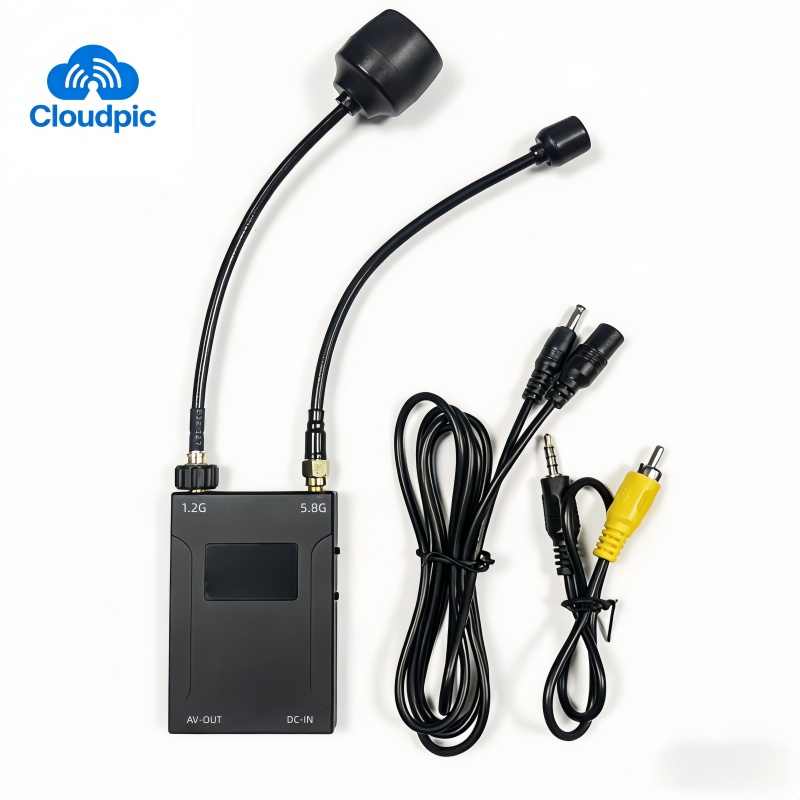

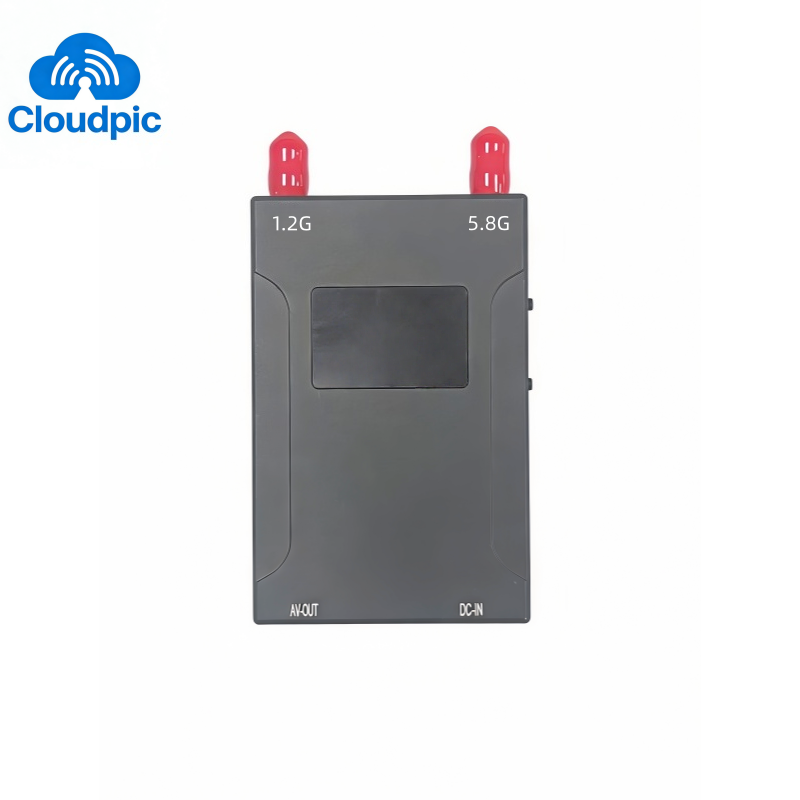

CP1258R 1.2-5.8G Dual Receiver
1.2-5.8G 64CH Dual Receiver

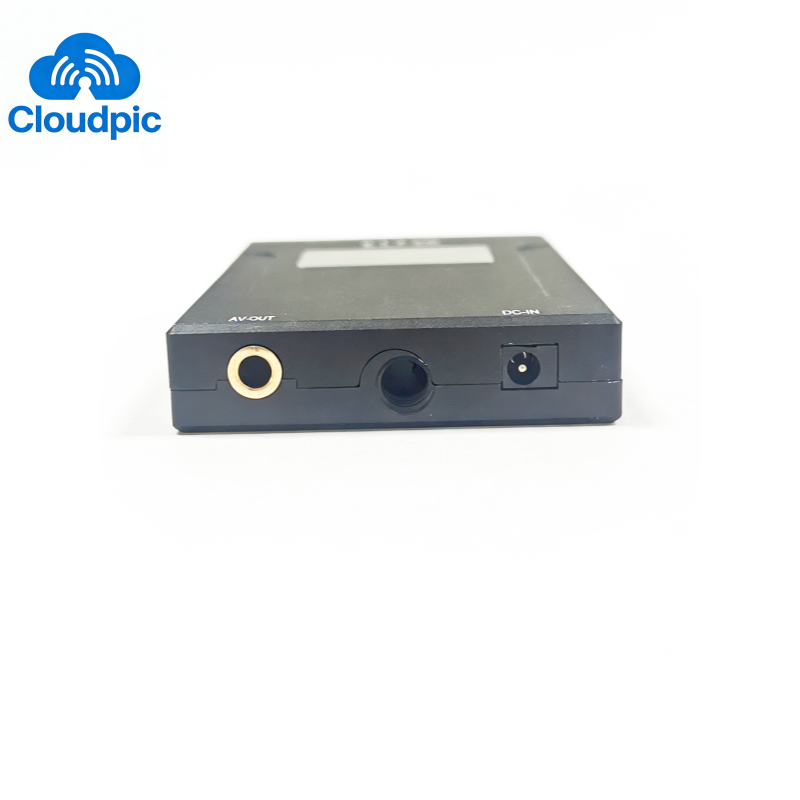

DC-IN (2S-7S)

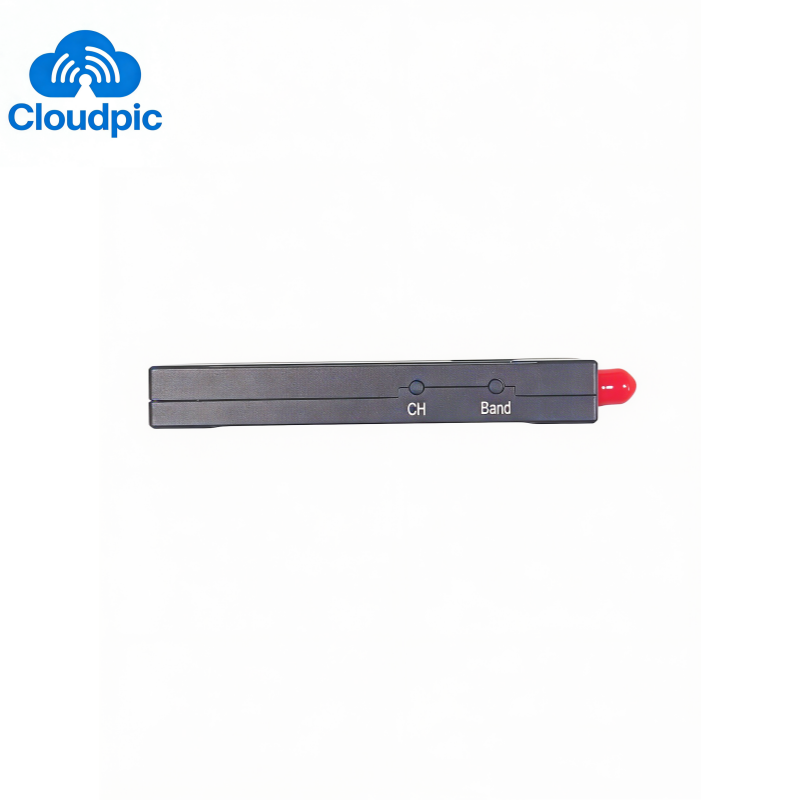

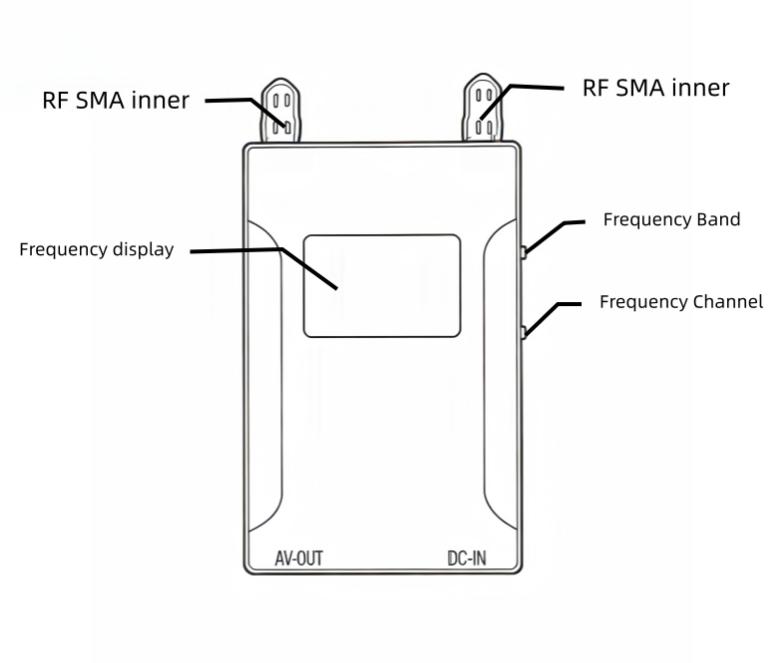

Short press the BAND button to switch frequency groups.
Short press the CH button to switch frequency points.
Frequency Point Table
Frequency Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
1.2G-A | 1080 | 1120 | 1160 | 1200 | 1240 | 1280 | 1320 | 1360 |
5.8G-A | 5865 | 5845 | 5825 | 5805 | 5785 | 5760 | 5745 | 5720 |
5.8G-B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
5.8G-E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
5.8G-F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
5.8G-R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
5.8G-L | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
5.8G-X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
