CP3642R 3.6G-4.2G Dual Receiver

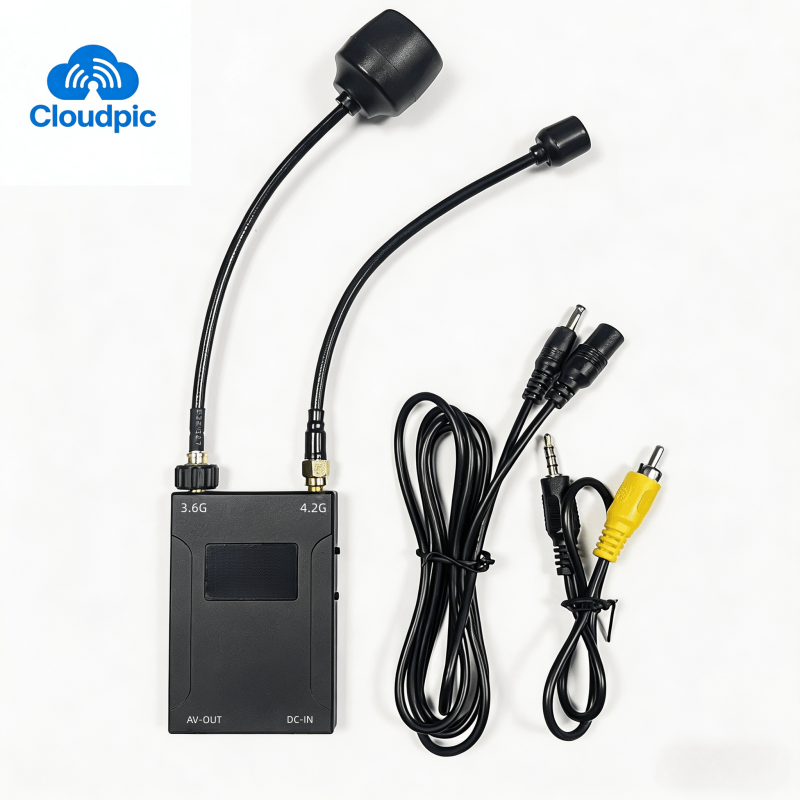

3.6G-4.2G 24CH Dual Receiver BOX DC 7-35V with Dual Antenna for FPV Long Range Racing Drone

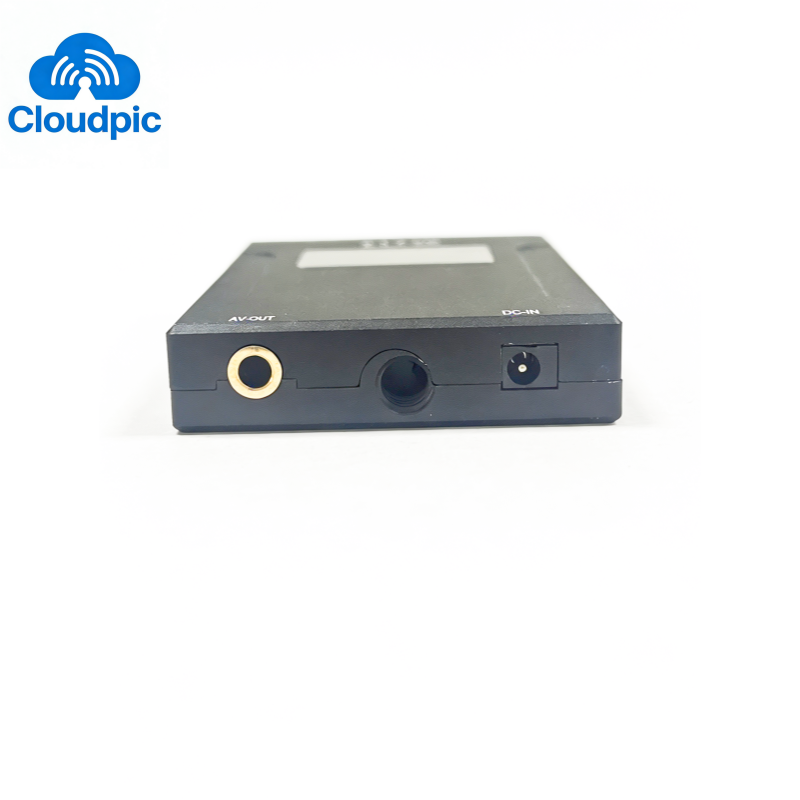

DC-IN (2S-7S)

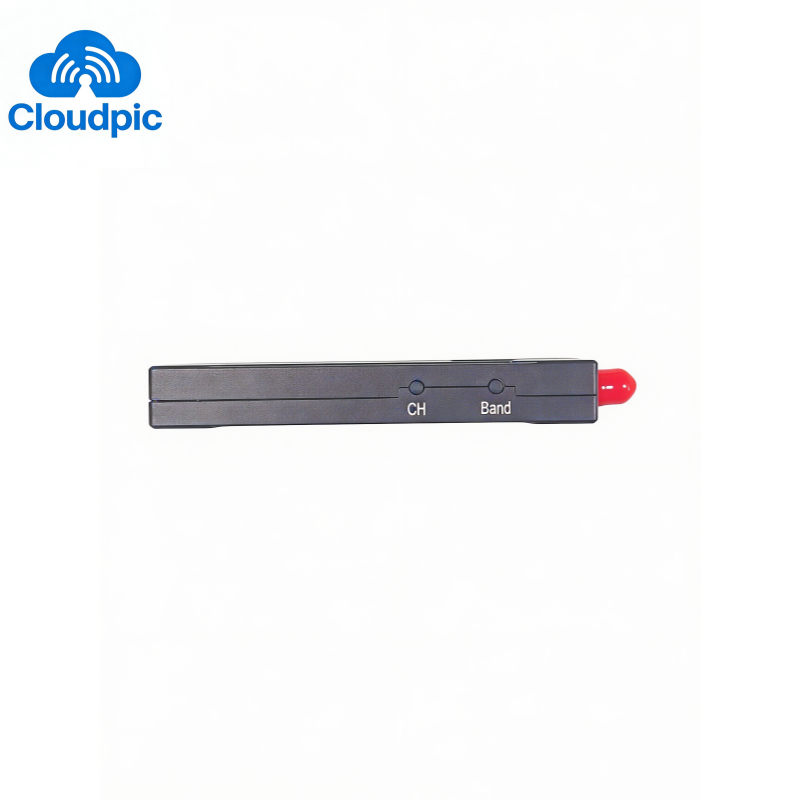

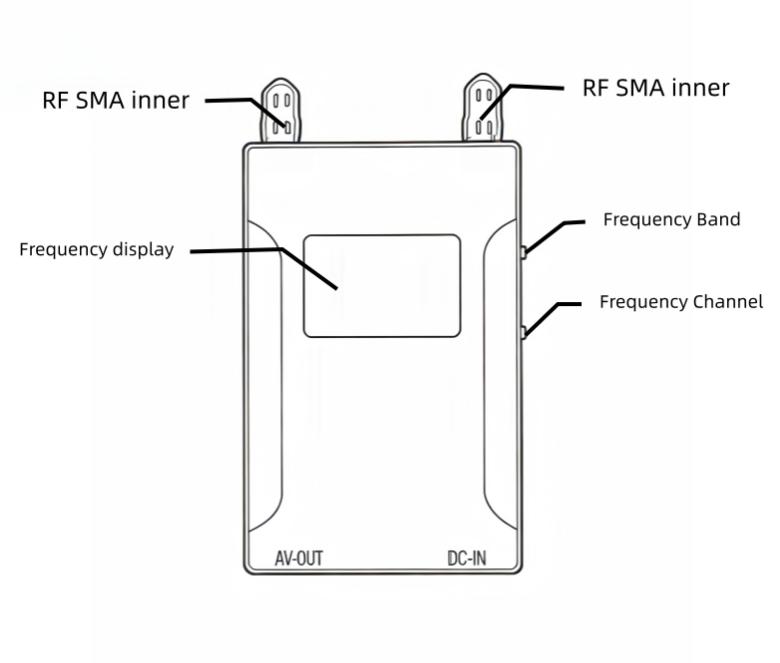

Short press the BAND button to switch frequency groups.
Short press the CH button to switch frequency points.
Frequency Point Table
Frequency Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
BAND_A | 3600 | 3620 | 3640 | 3660 | 3680 | 3700 | 3720 | 3740 |
BAND_B | 3760 | 3780 | 3800 | 3820 | 3840 | 3860 | 3880 | 3900 |
BAND_C | 3920 | 3940 | 3960 | 3980 | 4000 | 4020 | 4040 | 4060 |
BAND_D | 4080 | 4100 | 4120 | 4140 | 4160 | 4180 | 4200 | 4220 |
