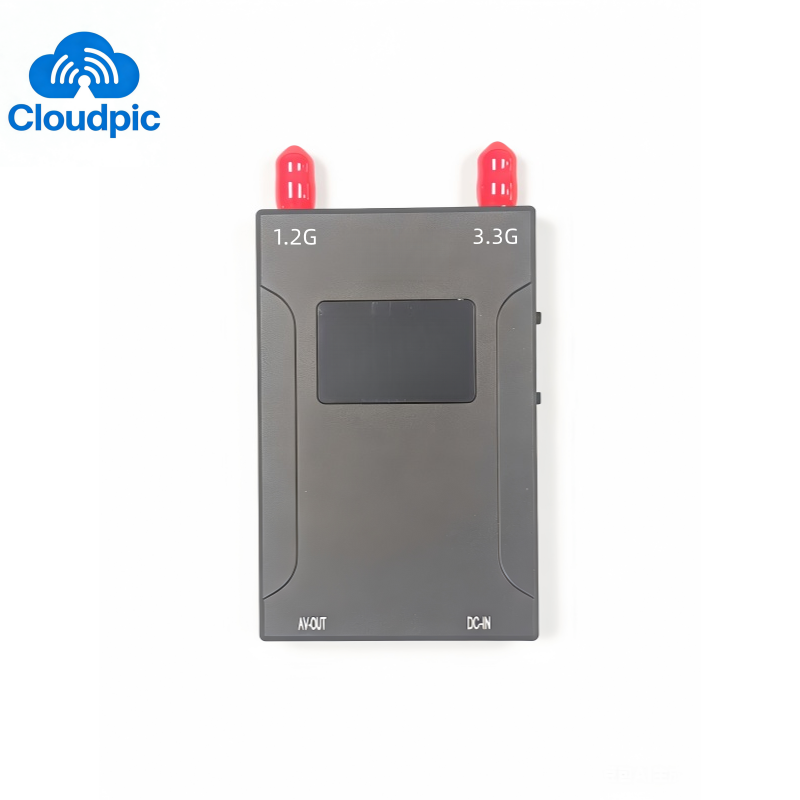

CP1233R- 1.2G-3.3G Receiver

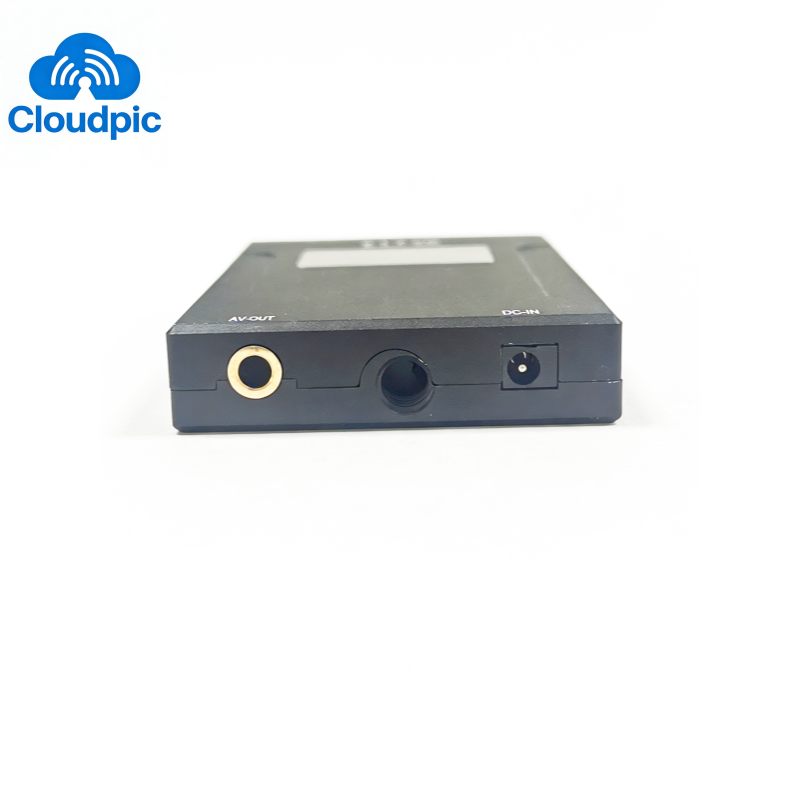

DC-IN (2S-7S)

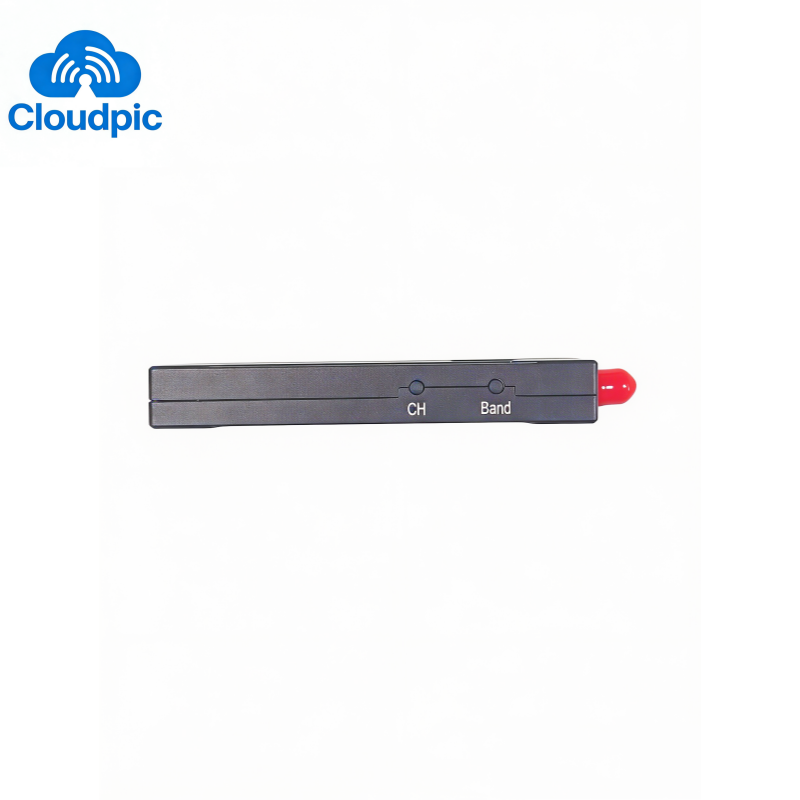

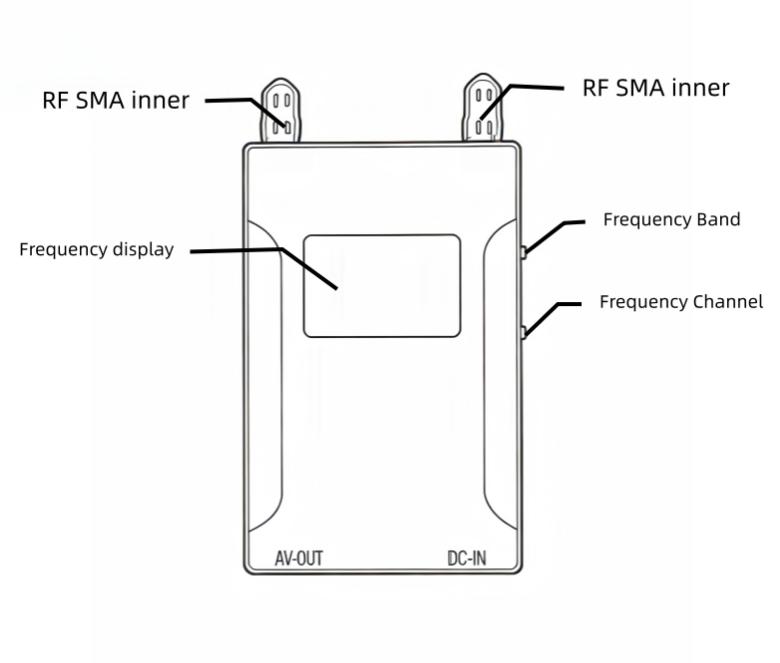

Short press the BAND button to switch frequency groups.
Short press the CH button to switch frequency points.
Frequency Point Table
Frequency Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
1.2G-A | 1080 | 1120 | 1160 | 1200 | 1240 | 1280 | 1320 | 1360 |
3.3G-A | 3060 | 3080 | 3100 | 3120 | 3140 | 3160 | 3180 | 3200 |
3.3G-B | 3220 | 3240 | 3260 | 3280 | 3300 | 3320 | 3340 | 3360 |
