CP3358T 3.3G-5.8G 3W transmitter

With its ability to operate on 3.3G and 5.8G dual frequencies, this VTX offers a long range for your FPV freestyle drone, enhancing your flying experience.

Feature
Specification

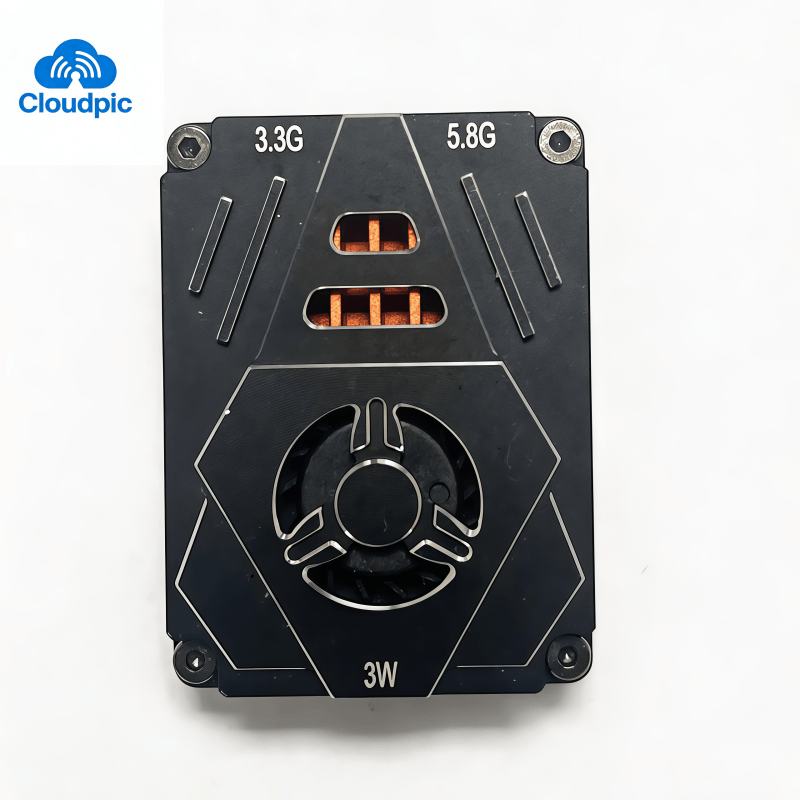

1_副本

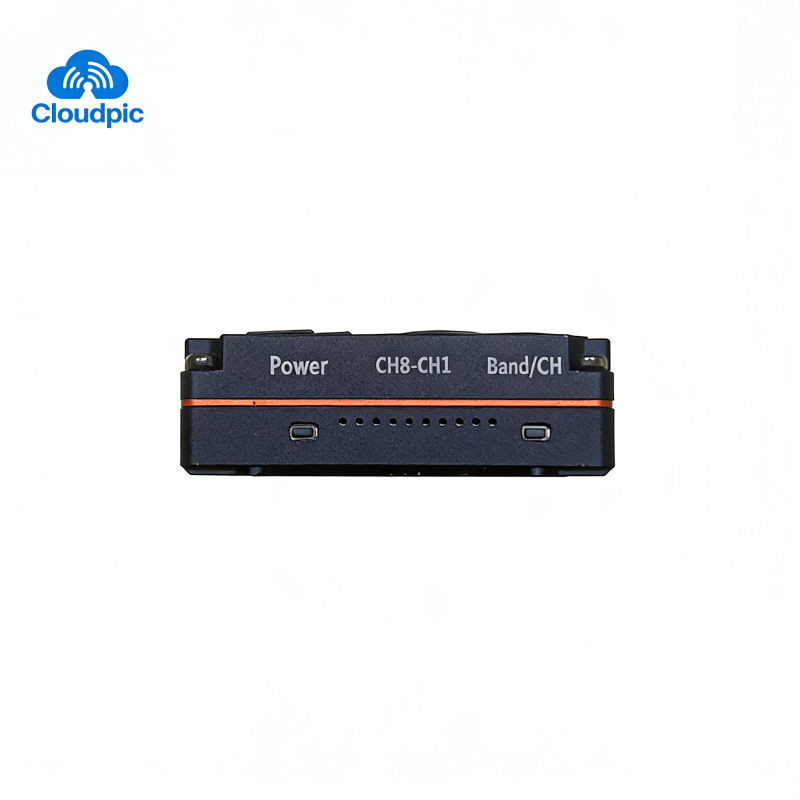

侧面_副本

General Specifications

Item	Specification
Frequency	3.3G 16CH, 5.8G 56CH
Input Voltage	DC 7-32V, supports 2-6S battery input
Output Power	25mW/800mW/1600mW/3000mW
Antenna Interface	MMCX
Input Interface	SH1.0 6P
Mounting Holes	25×25/Φ2mm; 30.5×30.5/Φ2mm
FPV Transmitter Protocol	IRC Tramp
Weight	41g

2. Key Operation Instructions

2.1 POWER Key (Green Light Indicator)

Operation	Function	Indicator Status (Green Light)
Short Press	Switch power level	1 flash = 25mW2 flashes = 800mW3 flashes = 1W4 flashes = 3W
Long Press (2s)	Switch to PIT mode	Steady light (PIT mode activated)

2.2 Band/CH Key

Light Color	Operation	Function	Indicator Status
Red	Long Press (2s)	Switch frequency band group	1 flash = 3.3G-A2 flashes = 3.3G-B3 flashes = 5.8G-A4 flashes = 5.8G-B5 flashes = 5.8G-E6 flashes = 5.8G-F7 flashes = 5.8G-R8 flashes = 5.8G-L9 flashes = 5.8G-X
Blue	Short Press	Switch frequency channel	Cycle through CH1 to CH8

4,Frequency Table (MHz)

Frequency Band	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
3.3G-A	3060	3080	3100	3120	3140	3160	3180	3200
3.3G-B	3220	3240	3260	3280	3300	3320	3340	3340
5.8G-A	5865	5845	5825	5805	5785	5760	5745	5720
5.8G-B	5733	5752	5771	5790	5809	5828	5847	5866
5.8G-E	5705	5685	5665	5645	5885	5905	5925	5945
5.8G-F	5740	5760	5780	5800	5820	5840	5860	5880
5.8G-R	5658	5695	5732	5769	5806	5843	5880	5917
5.8G-L	5362	5399	5436	5473	5510	5547	5584	5621
5.8G-X	4990	5020	5050	5080	5110	5140	5170	5200

Item	Specification
Frequency	3.3G 16CH, 5.8G 56CH
Input Voltage	DC 7-32V, supports 2-6S battery input
Output Power	25mW/800mW/1600mW/3000mW
Antenna Interface	MMCX
Input Interface	SH1.0 6P
Mounting Holes	25×25/Φ2mm; 30.5×30.5/Φ2mm
FPV Transmitter Protocol	IRC Tramp
Weight	41g
